Fire Cabinets & Interfaces

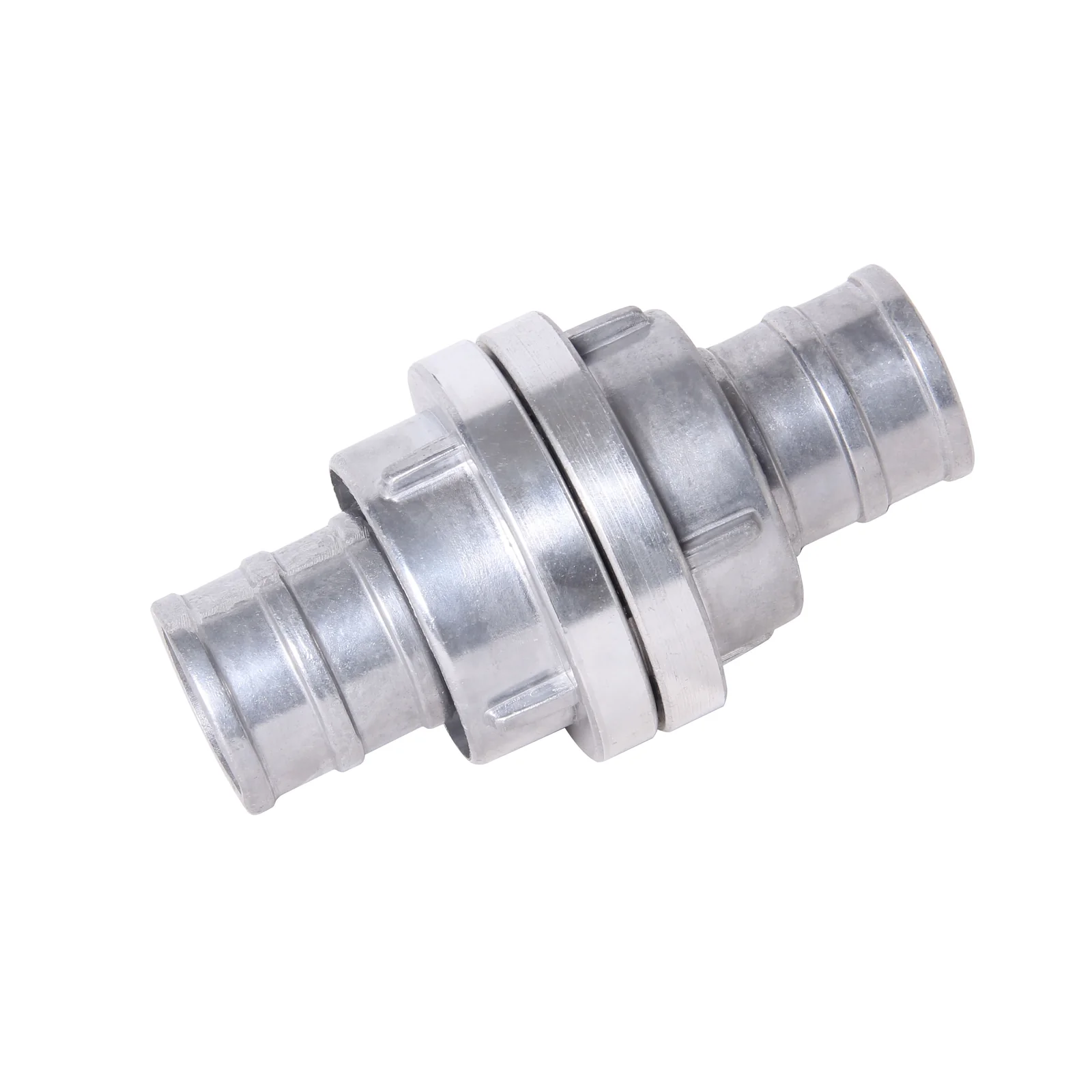

2.5" Aluminum Storz Coupling (German Standard)
German standard Storz fire hose coupling in aluminum with self-sealing edge. Quick-connect design for reliable hose-to-hose and hose-to-nozzle connection, suitable for clear water and foam mixture firefighting applications.
Key Features
- German standard Storz quick-connect design
- Self-sealing edge for leak-free connection
- Aluminum construction with optional brass/chrome plating
- Suitable for water and foam mixture media
- Easy installation, durable and portable
Technical Specifications
- Size
- 2.5" (DN50 / DN65 / DN80 / DN100 / DN150)
- Material
- Aluminum (Brass / Chrome Plated options)
- Pressure
- 1.6 MPa
- Standard
- German Storz Standard
- Maximum Range
- 28m
- Applicable Medium
- Clear Water and Foam Mixture
- Connection
- Storz Quick Connect with Barbs
Parts & Materials List
- Coupling Body
- Aluminum Alloy
- Gasket
- Self-Sealing Rubber
- Options
- Brass / Chrome Plated
Applications
- Indoor firefighting stations
- Chemical and fuel storage areas
- Building fire hose systems
- Marine and offshore installations
Quality & Testing
Pressure and function testing of reels, nozzles and proportioners; foam expansion ratio verified per model.
Frequently Asked Questions
Which hose and connection systems does the Storz coupling suit?
It is a German-standard Storz quick-connect coupling with a self-sealing edge, used for hose-to-hose and hose-to-nozzle connections with clear water and foam mixture media. Hydrant outlet threads (such as BS336, NIST or KWS) need the matching adapter — the coupling itself is the quick-connect interface.
What pressure rating and sizes are available?
Working pressure is 1.6 MPa, in sizes covering 2.5" (DN50 / DN65 / DN80 / DN100 / DN150), in aluminum with optional brass or chrome plating.
Does the coupling come with barbs for hose fitting?
Yes — the Storz connection uses quick-connect with barbs for attaching to layflat hose ends, and can be supplied factory-fitted or loose depending on the order.
Can it be used with the Model 8-65 layflat fire hose?
Yes. The 2.5" size matches the Model 8-65 (65mm) hose configuration — pair it with our layflat fire hose and adjustable pistol grip nozzles for a complete line set.
