Fire Water Cannon Systems for High-Risk Industrial Environments
Wanlian Fluid manufactures high-flow fire water cannons for petrochemical plants, LNG terminals, warehouses and airports — from fixed manual monitors to fully autonomous auto-tracking cannons with remote and smart control.
Water Cannon Series
Auto-Tracking Jet Suppression Cannon (ZDMS)
IR/UV auto-detection, 360° rotation, 40–65m radius
Manual Fire Water Cannon (PS Series)
20–200 L/s, jet range up to 110m, water or foam

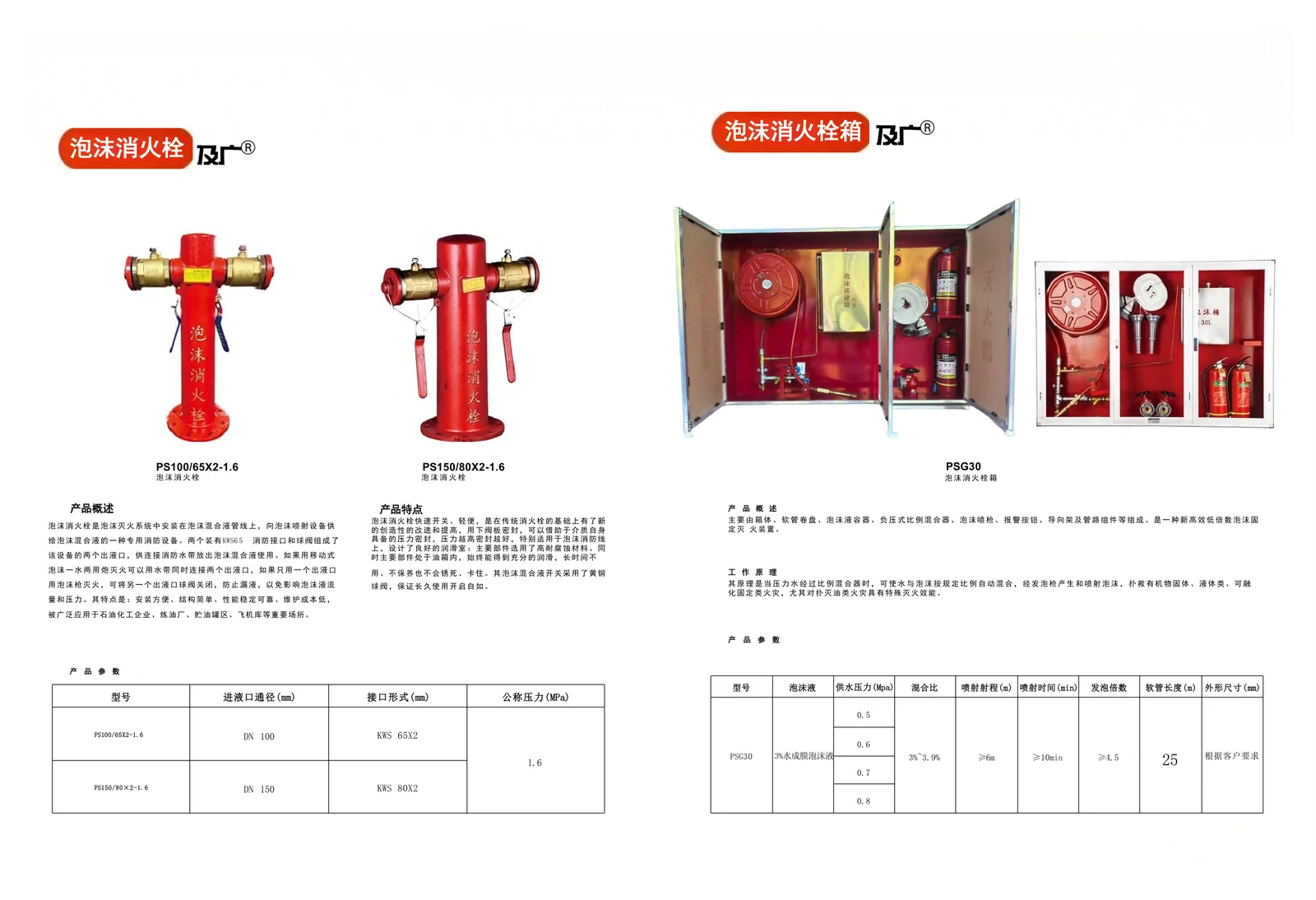

Foam Fire Hydrant Cabinet (PSG30)
3% AFFF foam unit for chemical and oil fires
Fire Hose Reel Accessories Set (JPS0.8-19)
20–30m layflat hose, swivel mount, fast response
Core Technical Specifications
| Specification | Details |
|---|---|
| Rated flow | 5 – 200 L/s per model (customizable up to 150 L/s on ZDMS) |
| Jet range | 50 – 110 m depending on model and inlet pressure |
| Rotation | Horizontal 360°, vertical -90° to +70° |
| Control modes | Manual / Remote (PC, mobile APP, central cabinet) / Automatic (flame detection) |
| Body material | T6 hard-anodized aluminum alloy / bronze, SS304 waterway |
| Optional | Explosion-proof (Exde II BT4 Gb), foam proportioning |
Applications
Fire water cannons protect petrochemical process areas, oil and LNG storage tank farms, loading terminals, large warehouses, airport hangars and substations — high-ceiling or open-air sites where fixed suppression must reach long distances under high heat.
Why Choose Wanlian Fluid
- One order, one factory — water cannons shipped with matched valves, couplings and hydrants for the complete suppression loop.
- Project engineering — we recommend range, flow and control configuration from your site layout.
- Certified quality — UL/ULC, FM and ISO 9001 quality systems; see our certificates page.
Frequently Asked Questions
What is the effective range of your fire water cannon? +
Range depends on model and inlet pressure — typically 50 to 110 meters at rated flow for our PS series, with monitoring radii of 40–65 m for the ZDMS auto-tracking series. Tell us your site layout and we will recommend the right model.
Can the water cannon be operated remotely? +
Yes. Our ZDMS auto-tracking cannon operates fully autonomously with IR/UV flame detection, and supports manual remote override via PC, mobile app or central control cabinet. Fixed monitors are also available with manual hand-lever operation.
What flow rates are available? +
Standard models range from 5 L/s up to 200 L/s. The ZDMS series is available at 5, 10, 20 and 30 L/s (customizable up to 150 L/s), while the PS manual series covers 20–200 L/s. Custom flow rates can be engineered per project.
Does the smart model integrate with fire alarm systems? +
Yes, ZDMS smart water cannons use multi-band infrared and ultraviolet sensors for automatic fire detection, positioning and jetting within 30 seconds, and can be linked to fire alarm panels. Explosion-proof configurations are available as an option.
Do you supply the complete system including valves and piping? +
Yes. We manufacture the cannon and ship it together with matched valves, couplings, hydrants and accessories for the full suppression loop, simplifying procurement and ensuring system compatibility.
Need a Water Cannon for Your Site?
Send us your site layout, required range and flow — our engineers recommend the right model and reply with a full quotation within 12 hours.
