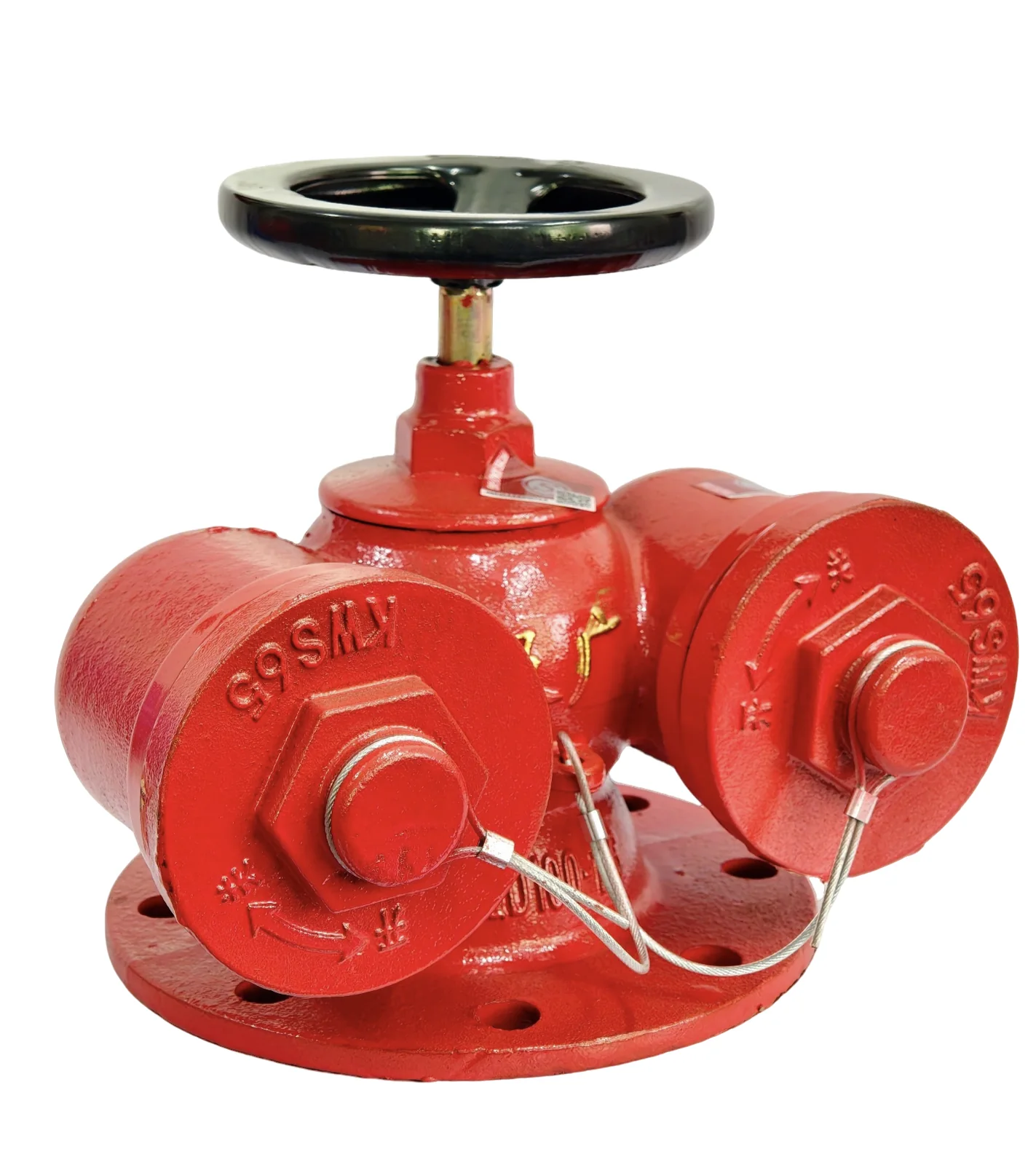

SQD100-1.6 Fire Pump Adapter (Siamese Connection)

SQD100-1.6 fire department siamese connection with twin DN65 inlets (SQS65 / KWS65) and DN100 flanged outlet. Powder coated ductile iron body with integrated control valve for reliable fire pump water supply connection.

Key Features

Twin inlet design for dual fire engine water supply
Integrated control valve with handwheel for flow regulation
Powder coated corrosion resistant finish
Safety cables on caps prevent loss during operation
Compact design suitable for airport and municipal fire protection

Technical Specifications

Model: SQD100-1.6
Inlet: 2 × DN65 (2.5") with caps (SQS65 / KWS65)
Outlet: DN100 (4") Flanged
Pressure Rating: 1.6 MPa
Length: 120 mm
Finish: Powder Coated Red

Parts & Materials List

Body: Ductile Iron / Cast Iron
Handwheel Stem: Brass / Stainless Steel
Safety Cables: Braided Steel

Applications

Municipal fire protection networks
Industrial and warehouse yards
Indoor standpipe systems
Cold-climate outdoor installations

Quality & Testing

Hydrostatic pressure testing (2.4 MPa typical) and flow testing per GB 4452 or applicable export standards.

Inquire Now Request Product Documentation

Frequently Asked Questions

What outlet connection standards are available for export fire hydrants?

Common outlet connections include BS336 (UK/Commonwealth), NIST (Middle East), KWS (Germany) and flexible flange options. We can supply hydrants with the connection type specified for your market.

What pressure rating should a municipal fire hydrant have?

Standard municipal hydrants are rated at PN16 (1.6 MPa), which covers most urban and industrial water supply networks. High-rise or high-demand industrial zones may require PN25 hydrants.

Are Wanlian hydrants available with UL or FM certification?

Yes, depending on the model and destination market. Contact our sales team with your project specification and target region so we can match the correct certification package.

Do outdoor hydrants have antifreeze protection?

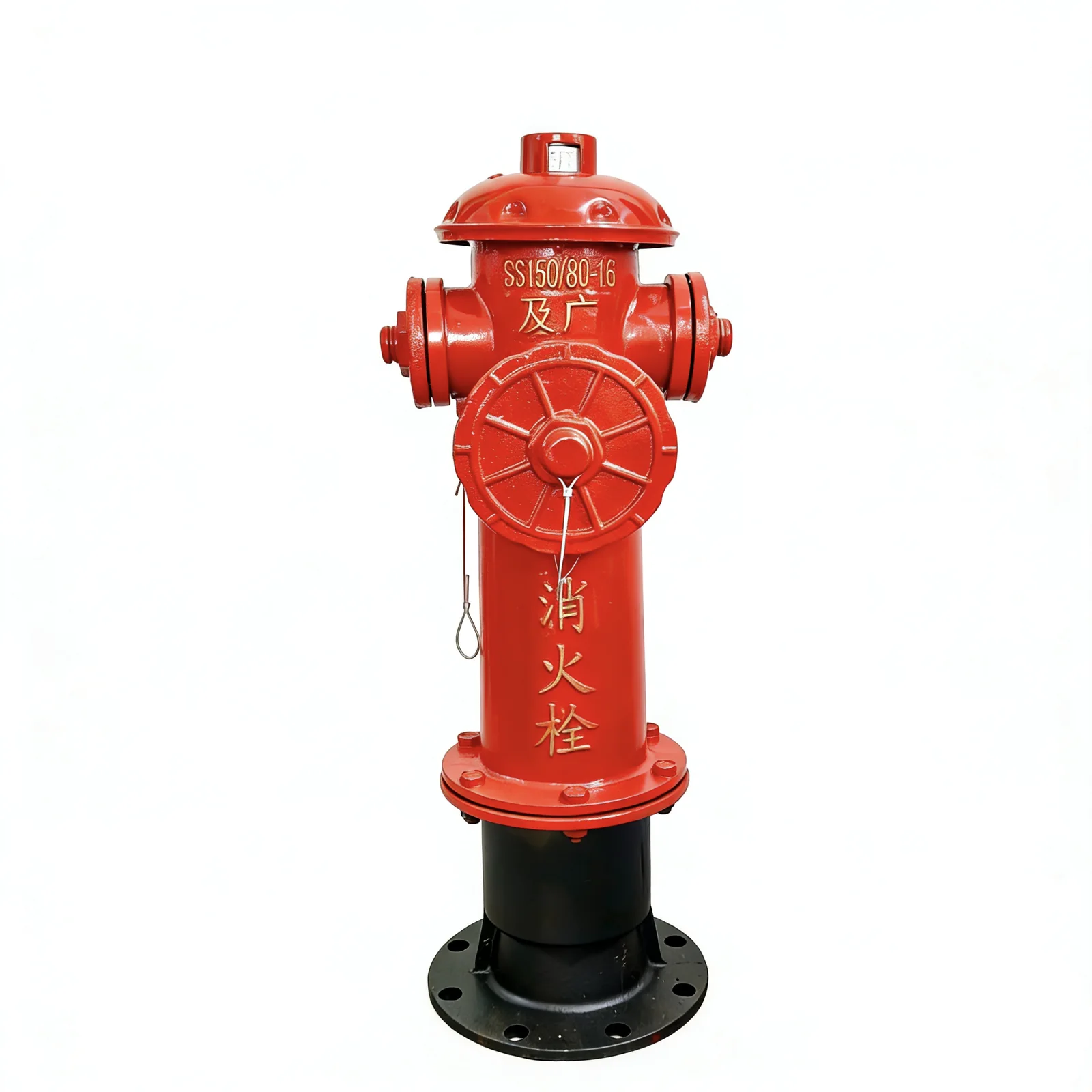

Models such as the SS100 overground hydrant feature an automatic frost-drainage mechanism for cold climates. Anti-collision (SSFT100) and IoT smart (SS100ZN) variants are also available.
