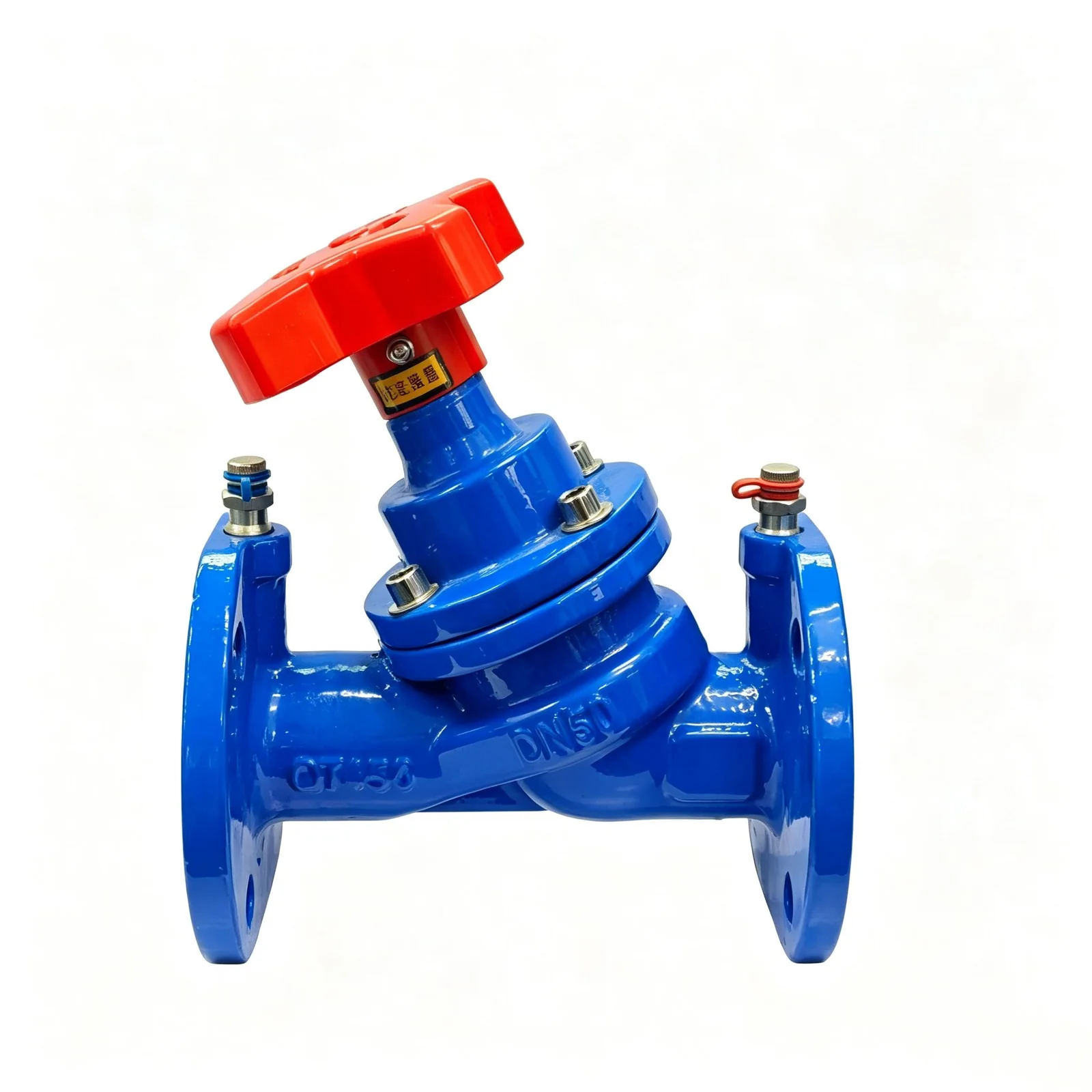

SP45F Flange Digital Balancing Valve

SP45F flanged digital balancing valve in nodular cast iron (QT450) with digital lock display for precise HVAC hydraulic balancing. Y-pattern globe structure with dual pressure test points for accurate flow measurement.

Key Features

Digital lock display for precise flow balancing
Dual pressure test points for accurate measurement
Nodular cast iron (QT450) body for durability
Y-pattern globe structure with low pressure loss
Suitable for HVAC and water regulation systems

Technical Specifications

Size Range: DN50 - DN300
Material: Nodular Cast Iron (QT450)
Pressure: Medium Pressure
Media: Water, Oil, Gas
Structure: Balancing Valve (Y-Pattern Globe)
Media Temperature: Normal Temperature
Warranty: 1 Year
Customization: OEM / ODM

Parts & Materials List

Valve Body: Nodular Cast Iron (QT450)
Handwheel: Ductile Iron
Test Points: Stainless Steel

Applications

Water supply & distribution
Wastewater and sewage networks
Industrial process pipelines
HVAC systems

Quality & Testing

100% shell and seat pressure testing per GB/T13927 or EN 12266-1; epoxy resin coating tested for corrosion resistance.

Inquire Now Request Product Documentation

Frequently Asked Questions

What standards and connection types are available for Wanlian valves?

Wanlian valves are manufactured to GB, ANSI, DIN and JIS standards on request. Flanged, grooved, wafer and threaded connections are available depending on the model. Tell our engineers your DN/PN and connection type in the inquiry and we will confirm the matching configuration.

What materials are used for the valve body and sealing?

Bodies are typically ductile iron (QT450), cast iron or cast/forged steel depending on the model. Sealing elements use EPDM or NBR rubber, and stems are stainless steel (2Cr13/304). Material options can be customized for specific media and temperature ranges.

What is the MOQ and lead time?

Standard MOQ is typically 20 units per model for stock sizes, with production lead times of 15-30 days depending on quantity and customization. Sample orders are available for pre-shipment testing.

How are the valves tested before shipment?

Every valve undergoes 100% shell and seat pressure testing in accordance with the applicable standard (e.g. GB/T13927, EN 12266-1). Test reports and third-party inspection can be arranged on request.
