Fire Sprinkler Systems: Wet, Dry or Pre-action? (2026 Guide)
Sprinkler systems share one goal — put water on the fire fast — but the plumbing between the water supply and the sprinkler head changes everything about response time, freeze resistance and water damage risk. This guide compares the three main system types, explains how to choose sprinkler heads, and lists the components your BOM actually needs.
Glass Bulb Sprinkler (ZST)
K=80/115, 57–141°C, pendent/upright/sidewall
Wet Alarm Check Valve (ZSFZ)
Alarm gong + retard chamber, DN100–DN200

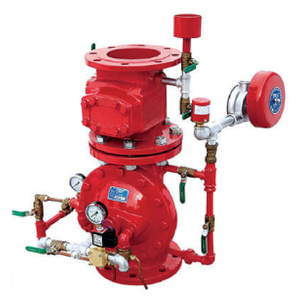

Pre-action System (ZSFY)
Dual-trigger failsafe for critical rooms

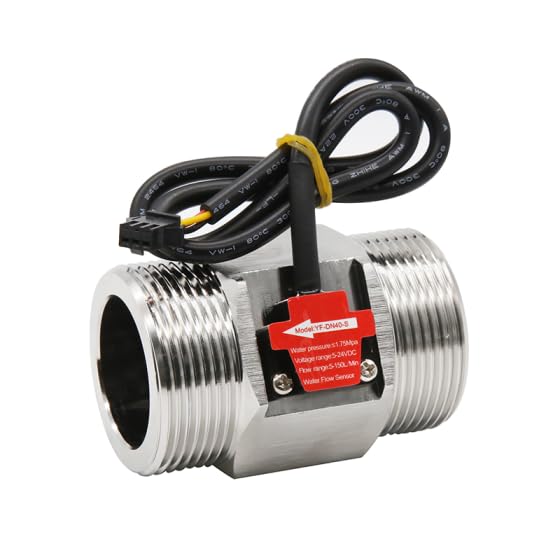

Flow Indicator (ZSJZ)
Adjustable 2–60s delay, DN50–DN200

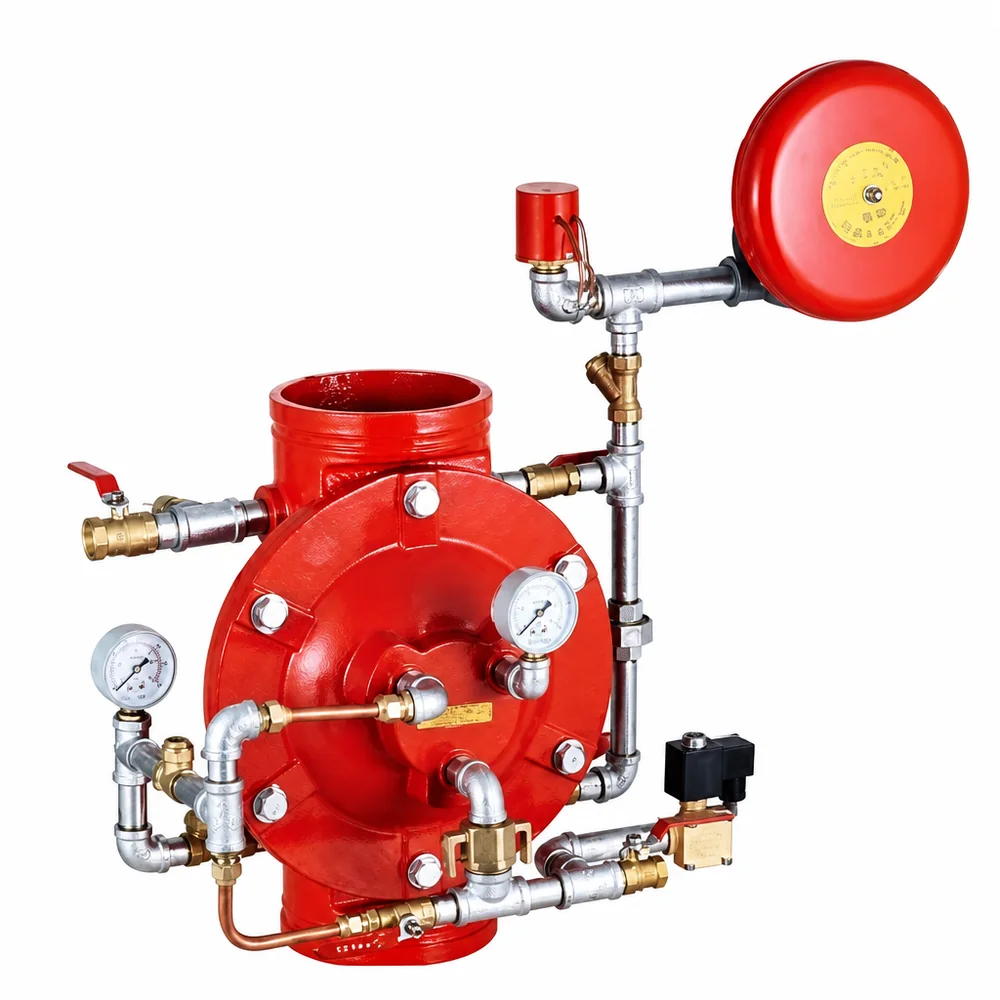

Deluge Valve Group (ZSFM)
For deluge and water spray systems
1. The Three System Types Compared
| Type | How it works | Typical use |
|---|---|---|
| Wet system | Pipes constantly filled; head opens → immediate discharge | Heated commercial, residential and industrial buildings |
| Dry system | Pipes hold pressurized air/nitrogen; dry pipe valve admits water on activation | Unheated spaces: parking garages, cold stores, loading docks |
| Pre-action | Air-filled pipes; water admitted only after two independent signals | Data centres, archives, museums, computer rooms |
Wet systems respond fastest and cost least to maintain, which is why building codes default to them wherever the space is heated. Dry systems trade a few seconds of response for freeze protection. Pre-action systems deliberately delay flooding until detection confirms fire — the right trade-off where a false discharge is as damaging as the fire itself.
2. Choosing Sprinkler Heads
The head is where the system meets the fire, and three parameters define it:
- K-factor — discharge capacity. K80 and K115 cover most occupancies; higher K-factors serve high-challenge hazards. Our ZST series offers both.
- Temperature rating — the activation point, from 57°C (red) to 141°C (blue), color-coded glass bulbs. Ordinary-hazard ceilings take 68°C; heat-generating equipment areas need higher ratings.
- Response type — quick-response (3mm bulb) reacts faster and is often required for residential and light-hazard occupancies; standard-response (5mm bulb) suits ordinary and extra-hazard groups.
Orientation matters too: pendent heads hang below the pipe, upright heads sit above it, and sidewall heads protect corridors and small rooms. Match the head to the ceiling construction, not just the catalogue photo.
3. The Components Your BOM Needs
Beyond heads, a complete sprinkler system includes the alarm valve group, flow detection, and protection accessories:
- Wet alarm check valve (ZSFZ) — separates supply from sprinkler piping, sounds the hydraulic gong, and its retard chamber filters pressure-surge false alarms.
- Deluge / pre-action valves (ZSFM, ZSFY) — the control brains for deluge and pre-action configurations.
- Flow indicators (ZSJZ) — detect flow in each zone and pinpoint the activated area to the panel.
- Y-strainers (SGL41H) — keep particulates out of valves and heads; a cheap component that prevents expensive blockages.
4. Compliance Notes
NFPA 13 governs installation in North America and is the de-facto reference in many export markets. Key points that catch buyers out: certified components (UL/ULC listed where applicable), correct hazard classification before selecting density, and documentation — request the actual certificates and batch test reports, not catalogue logos. Our certificates page publishes the certification package.
5. Procurement Checklist
- Classify the occupancy hazard (light / ordinary / extra) and confirm the design density.
- Choose system type: wet, dry or pre-action based on building temperature and water sensitivity.
- Select heads by K-factor, temperature rating, response type and orientation.
- Confirm component certification (UL/ULC) matches the destination market.
- Request a single BOM quote covering heads, valves, indicators and strainers.
- Clarify MOQ, lead time and spare parts in the commercial offer.
Explore Our Sprinkler System Components
View the full component range — heads, alarm valves, flow indicators — on the fire sprinkler systems page.
Related Guide: Sprinkler System Valves
Deep-dive on the valve assemblies — ZSFZ wet alarm, ZSFM deluge, ZSFY pre-action and ZSJZ flow indicators? Read the Fire Sprinkler System Valves Guide.
Frequently Asked Questions
Wet, dry or pre-action — how do I choose the right sprinkler system? +
Wet systems are the default for heated buildings: fastest response, lowest cost. Dry systems suit unheated spaces (parking garages, cold stores) where pipes could freeze. Pre-action systems protect water-sensitive areas (data centres, archives, museums) by holding water back until two independent signals confirm a fire. Your building code and hazard class decide the minimum requirement.
What do K-factor and temperature rating mean for a sprinkler head? +
K-factor defines how much water a head discharges at a given pressure — K80 and K115 are the common standards. Temperature rating sets the activation point (57°C to 141°C, color-coded glass bulbs). Match both to the hazard and ceiling height; quick-response (3mm bulb) heads react faster than standard-response (5mm bulb) types.
Are Wanlian sprinkler components UL listed? +
Yes. Our sprinkler heads and system components are UL/ULC listed where applicable, with certificates available on our certificates page. Our engineers confirm the exact certification package for your destination market before quoting.
Can you supply a complete sprinkler system BOM? +
Yes. Send project drawings or a component list and we quote heads, flexible connections, alarm valves, flow indicators, strainers and accessories as one package — one factory order for the whole loop, with matched specifications.
What is the role of the alarm check valve in a wet system? +
The wet alarm check valve (e.g. ZSFZ) separates the supply main from the sprinkler piping and sounds a hydraulic alarm gong when flow starts, while its retard chamber filters false alarms caused by pressure surges. Flow indicators (ZSJZ) then pinpoint the activated zone to the panel.
